Impregnated Extruded Activated Carbon For Mercury Vapor Adsorption

Impregnated Extruded Activated Carbon For Mercury Vapor Adsorption

ブランド名: esorbtech
モデル番号: GPT
MOQ: 1 メトリックトン
価格: 交渉可能
支払条件: T/T
供給能力: 年間3万トン
詳細情報
起源の場所:
中国
証明:
ISO
製品タイプ:
浸透した活性炭
材料:
石炭ベース
外観:
黒い円筒状のペレット
BET 表面面積:
900-1100m²/g
アプリケーション:
水銀蒸気の吸着
パッケージの詳細:
500kg/バッグ 25kg/バッグ
ハイライト:

Impregnated Extruded Activated Carbon

,

Mercury Vapor Adsorption Activated Carbon

,

Extruded Impregnated Activated Carbon

製品説明

Impregnated Extruded Activated Carbon for Mercury Vapor Adsorption



Product Introduction



Impregnated Extruded Activated Carbon for Mercury Vapor Adsorption is a high-performance activated carbon specifically formulated for the capture of elemental mercury (Hg⁰), oxidized mercury compounds, and organic mercury vapors.
It is widely used in industrial off-gas treatment, flue gas purification, natural gas processing, waste incineration, chlorine-alkali plants, and mercury-containing exhaust control systems.

Through precise impregnation with specialized catalytic agents, this activated carbon enables the oxidation, adsorption, and stabilization of mercury vapor, ensuring safe long-term immobilization.
Its cylindrical pellet structure provides low pressure drop, high hardness, and excellent durability, making it suitable for continuous operation under high-temperature or variable-moisture conditions.



 Specification  Value
 Mean Particle Diameter, mm  4.0
 BET Surface Area, ㎡/g  900-1100
 Mercury Vapor Adsorption Efficiency, %  95 (min)
 Moisture, %  5 (max)
 Bulk Density, kg/m³  450-550
 Hardness, %  95 (min)



Note: Core property ranges are stable across common impregnation systems (e.g., sulfur-based, halogen-based, and catalytic systems), ensuring consistent performance in mercury removal applications.





Features

  • High Mercury Capture Efficiency: Effectively removes Hg⁰ and Hg²⁺ via catalytic oxidation and strong chemisorption.

  • Long-Term Stability: Chemisorbed mercury remains immobilized, preventing re-emission even under temperature fluctuations.

  • High Surface Area & Strong Structure: Cylindrical pellets offer excellent adsorption kinetics, low attrition, and stable airflow.

  • Moisture-Resistant Performance: Maintains activity under varying humidity typical of industrial exhaust environments.

  • Safe & Reliable: Designed to prevent secondary pollution and compatible with continuous operation in industrial purification systems.

Applications

  • Flue Gas Mercury Control: Coal-fired power plants, industrial boilers, waste incinerators.

  • Chemical & Chlor-Alkali Industry: Removal of mercury from electrolytic cells and process off-gas streams.

  • Natural Gas Processing: Capture of mercury to protect downstream aluminum heat exchangers and catalysts.

  • Metal Processing & Gold Smelting: Mercury vapor removal from extraction, refining, and thermal processes.

  • Environmental Safety Systems: Used in exhaust purification units for laboratories and mercury storage facilities.

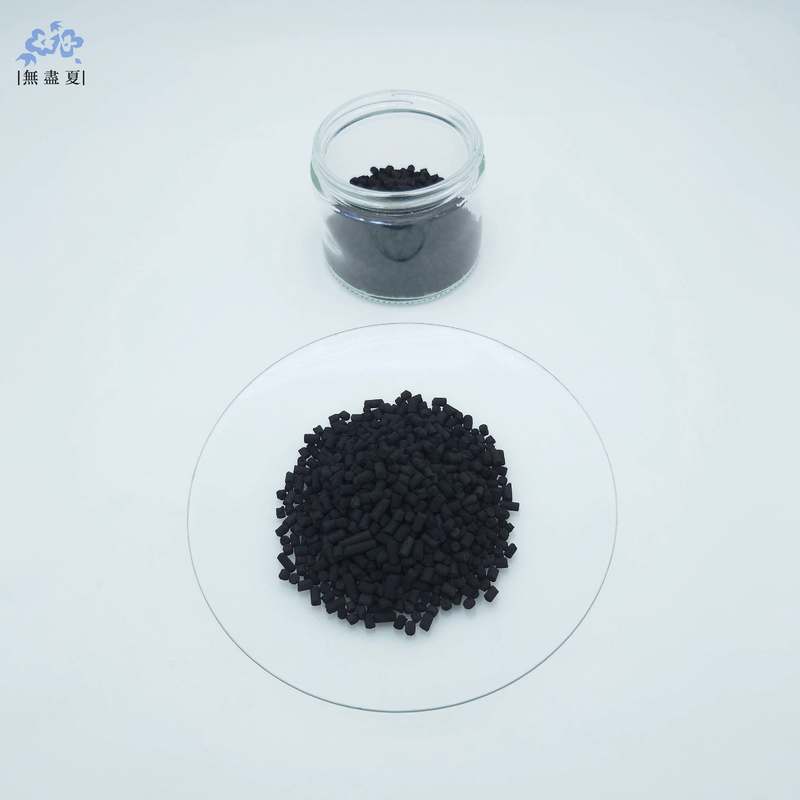

Impregnated Extruded Activated Carbon For Mercury Vapor Adsorption 0

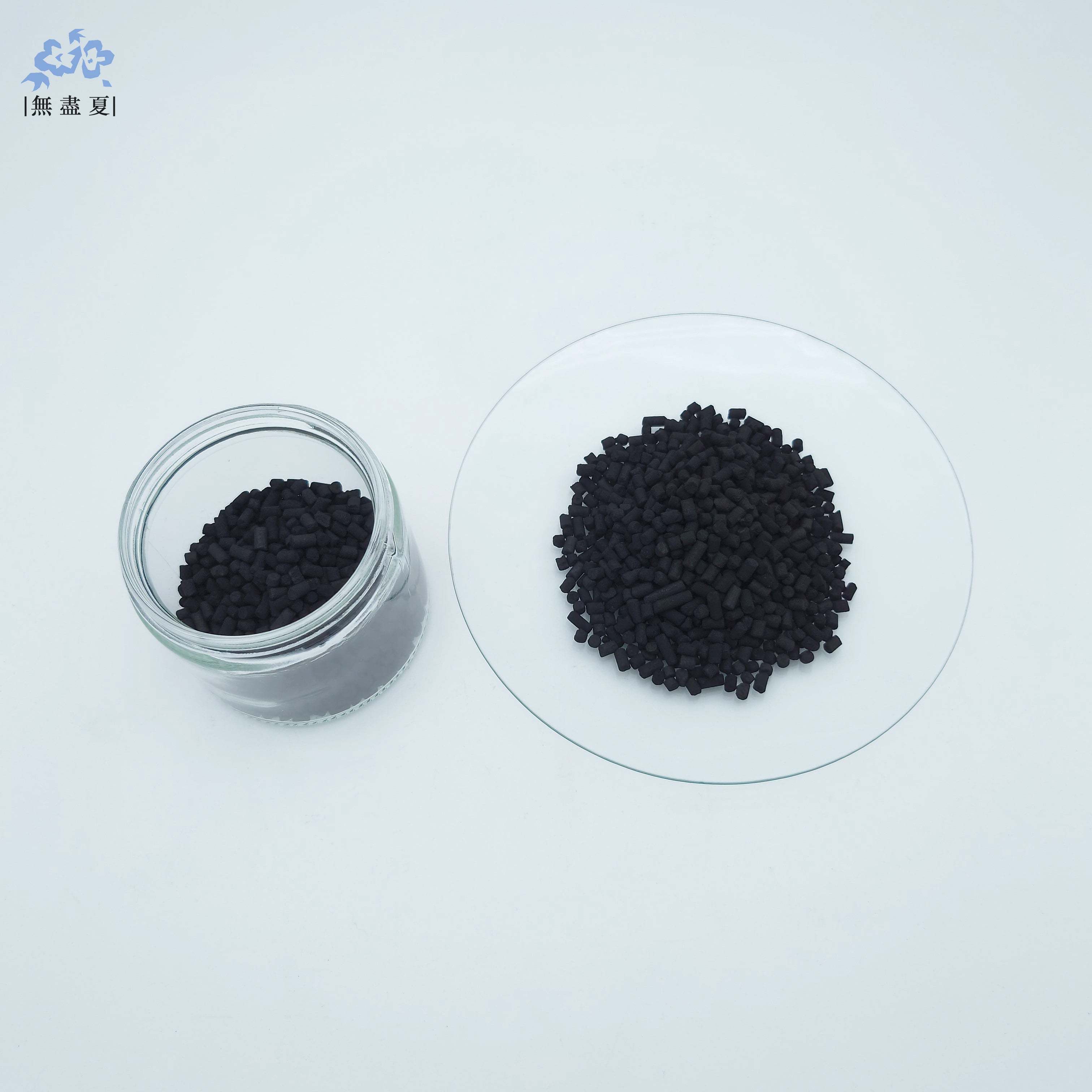

Impregnated Extruded Activated Carbon For Mercury Vapor Adsorption 1

Impregnated Extruded Activated Carbon For Mercury Vapor Adsorption 2



Manufacturing Process

  • High-Purity Activated Carbon Base: Extruded pellets with controlled pore distribution for enhanced mercury affinity.

  • Specialized Impregnation: Sulfur-based, halogen-based, or catalytic compounds applied to boost Hg⁰ oxidation and capture.

  • Thermal Curing & Stabilization: Ensures uniform impregnant distribution and long-term retention capacity.

  • Strict Quality Control: Each batch tested for hardness, surface area, moisture, and mercury adsorption efficiency.

Packaging Options

  • 25 kg Bags: Multi-layer kraft paper bags with PE inner liner for moisture protection.

  • 500 kg Jumbo Bags: Suitable for large-scale flue gas and industrial gas purification systems.

  • Custom Packaging: Available according to system loading or environmental safety requirements.
